Yato Long Handle Pneumatic Jack | Heavy-Duty, High-Lift

Having Trouble Lifting Cars and Trucks?

• Lifting cars can become difficult when using jacks that do not have enough capacity or are not suitable for the vehicle’s ground clearance.
• Standard jacks often struggle with lifting trucks or high-clearance vehicles.
• Using manual or substandard jacks can be dangerous, time-consuming, and reduce work efficiency.

The simple and effective solution for you is: Yato Long-Handle Pneumatic Jack with Extension Column.

Key Advantages of Yato Long-Handle Pneumatic Jack

High Lifting Capacity

• Load capacity up to 4 tons, ensuring strong lifting power for all types of cars, trucks, and heavy vehicles.
• Lifting range from 150 mm to 500 mm, suitable for a wide variety of vehicles, including high-clearance types.
• Removable extension column, allowing adjustment of lifting range from 15 cm to 42 cm, offering flexible lifting options.

Convenient and Easy to Use

• Simple pneumatic switch allows you to lift vehicles within seconds without requiring much manual force.
• Long, sturdy handle provides comfort and ease of use, reducing fatigue during prolonged work.

Premium Materials, High Durability

• Constructed from steel and rubber for enhanced durability, high load resistance, and excellent wear resistance.
• Wide operating temperature range from -30°C to +50°C, suitable for various working environments.

Safe and Time-Saving

• Operating pressure 0.8–1.2 MPa delivers strong lifting power without risk of overload.
• Low noise level helps reduce working noise, protecting user’s health.

Technical Specifications

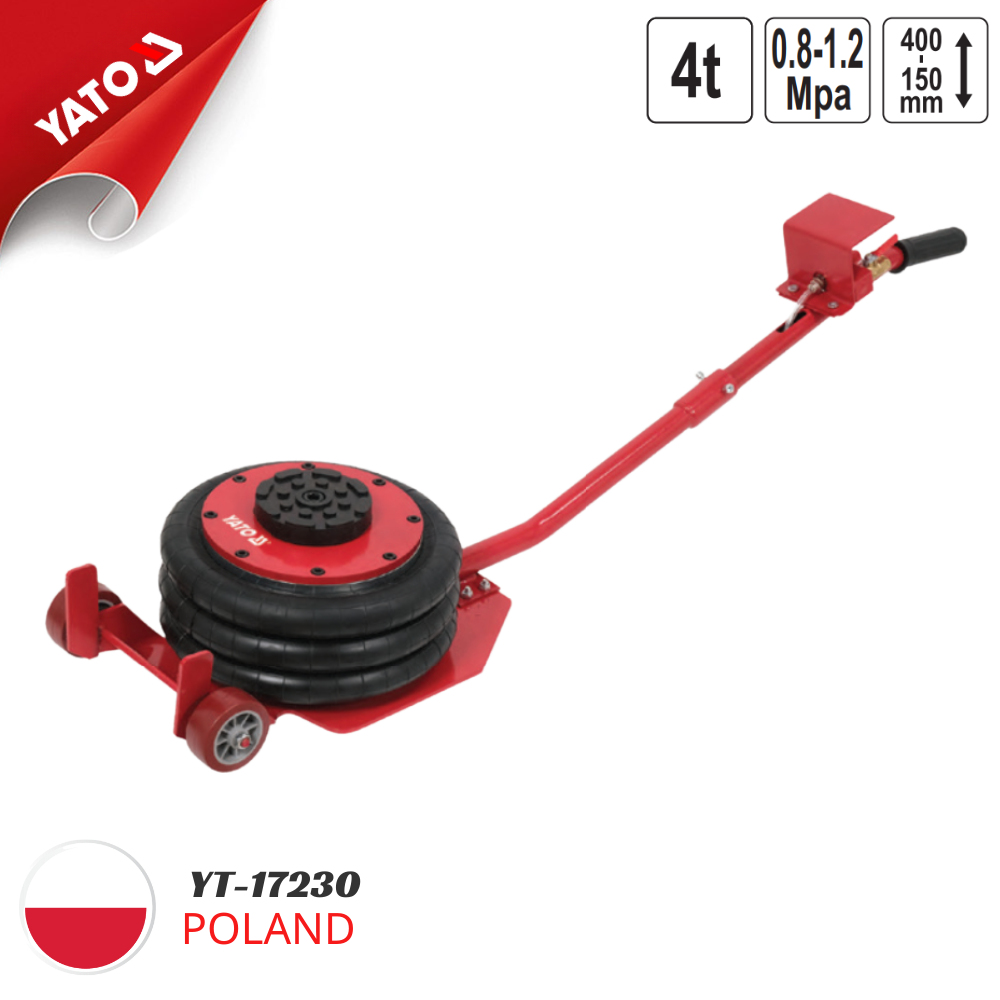

Yato YT-17230 Long-Handle Pneumatic Jack

• Brand: Yato
• Model: YT-17230
• Lifting capacity: 4 tons
• Lifting range: 150–400 mm
• Minimum lifting height: 150 mm
• Maximum lifting height: 400 mm
• Operating pressure: 0.8–1.2 MPa
• Pneumatic connection diameter (PT): Standard
• Air supply hose diameter: 3/8" (9.5 mm)
• Material: Steel, rubber
• Working temperature: -30 ~ +50°C
• Sound pressure: <70 dB(A)
• Sound power: <80 dB(A)
• Weight: 17.5 kg
• Set includes: Jack, extension column

Yato YT-17233 Long-Handle Pneumatic Jack

• Brand: Yato
• Model: YT-17233
• Lifting capacity: 4 tons
• Lifting range: 150–500 mm
• Minimum lifting height: 150 mm
• Maximum lifting height: 500 mm
• Operating pressure: 0.8–1.2 MPa
• Pneumatic connection diameter (PT): Standard
• Air supply hose diameter: 3/8" (9.5 mm)
• Material: Steel, rubber
• Working temperature: -30 ~ +50°C
• Sound pressure: <70 dB(A)
• Sound power: <80 dB(A)
• Weight: 17.5 kg
• Set includes: Jack, extension column

Yato YT-17237 Long-Handle Pneumatic Jack

• Brand: Yato
• Model: YT-17237
• Lifting capacity: 6 tons
• Lifting range: 150–400 mm
• Minimum lifting height: 150 mm
• Maximum lifting height: 400 mm
• Operating pressure: 0.8–1.2 MPa
• Pneumatic connection diameter (PT): Standard
• Air supply hose diameter: 3/8" (9.5 mm)
• Material: Steel, rubber
• Working temperature: -30 ~ +50°C
• Sound pressure: <70 dB(A)
• Sound power: <80 dB(A)
• Weight: 23 kg
• Set includes: Jack, extension column

Working Principle of Yato Long-Handle Pneumatic Jack

The Yato pneumatic long-handle jack uses compressed air technology to lift vehicles quickly and easily.
When connected to an air source, pressure of 0.8–1.2 MPa generates strong lifting force, allowing vehicles to be raised from 150 mm to 500 mm steadily.

Step 1: Connect the jack to the compressed air source.
Step 2: Adjust the handle to lift the vehicle to the desired height.
Step 3: Keep the vehicle stable for repair or maintenance work.
Step 4: Release the jack when the job is done.

Instructions for Use and Safety

User Instructions

• Preparation: Ensure the jack is properly connected to the compressed air source. Inspect before use.
• Operation: Adjust the handle to lift the vehicle gradually to the desired height.
• Usage: Only work when the vehicle is safely lifted and stabilized.
• Storage: After use, clean the jack and store it in a dry place to prolong its service life.

Safety Guidelines

• Do not overload: Ensure the load does not exceed 4 tons to avoid damage.
• Check pressure: Always maintain air pressure within 0.8–1.2 MPa.
• Observe temperature limits: Avoid using in extreme conditions outside -30°C to +50°C.
• Personal safety: Wear protective gear while working to prevent accidents.

Yato Tools Commitment

• Genuine products meeting European quality standards.
• Long-term warranty and dedicated technical support.
• Advanced technology that saves time and increases efficiency.

Yato Tools – European Quality, Optimal Solutions for Industrial Applications

Yato Tools, founded in 1990 in Poland, is a leading brand specializing in hand tools and industrial equipment. With over 30 years of experience, Yato is present in over 100 countries and offers more than 14,000 products serving industries such as automotive, construction, industrial, electrical, and mechanical repair.

Yato products are manufactured to CE, ISO, and GS standards, ensuring high quality, safety, and exceptional performance. Yato Tools is the top choice for professionals, repair technicians, and businesses that demand reliable tools and long-lasting durability.

Kocu Vietnam is the exclusive distributor of Yato Tools in Vietnam, committed to offering genuine products, reliable after-sales service, and professional technical support.
