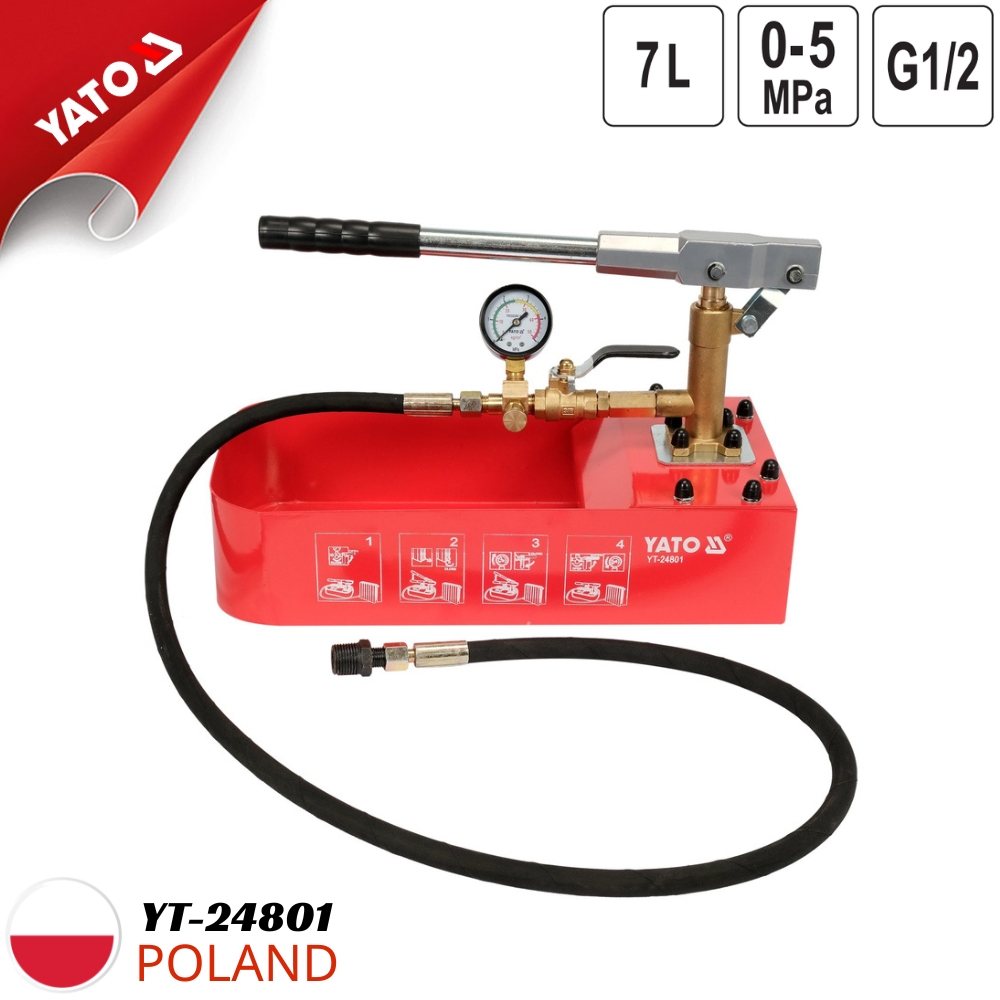

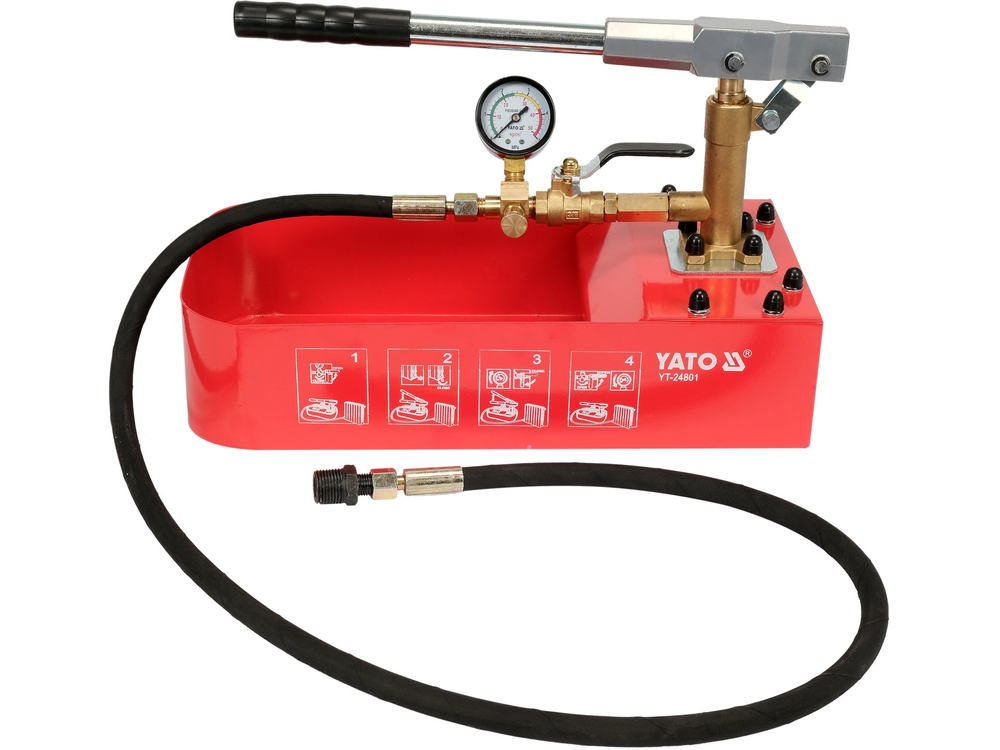

Pressure Test Pump for Pipe 50 bar 7L 1/2" Yato YT-24801 - Poland

Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801
Is the Pressure Test Pump 50 bar 7L 1/2" Yato YT-24801 really the solution you are looking for when your piping system frequently leaks, has unstable pressure, or takes too much time and effort to test pressure with inaccurate results? If you are operating a water system, central heating, compressed air, or oil and are concerned about tightness and safety before use, this is a common struggle faced by many technicians and contractors.

Benefits and Features of the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801

• Quickly and accurately test pipe pressure before actual operation.
• Detect leaks and pressure loss early, reducing the risk of system damage.
• Suitable for water systems, central heating (CO), compressed air, oil, and solar energy systems.
• Maximum pressure of 50 bar meets both residential and industrial needs.
• 7L tank allows for continuous pumping, minimizing the need for frequent liquid refills.
• Sturdy aluminum body, corrosion-resistant, high durability.
• Chrome-plated handle, comfortable operation, less hand fatigue.
• Equipped with a safety valve to maintain stable pressure, ensuring peace of mind during use.

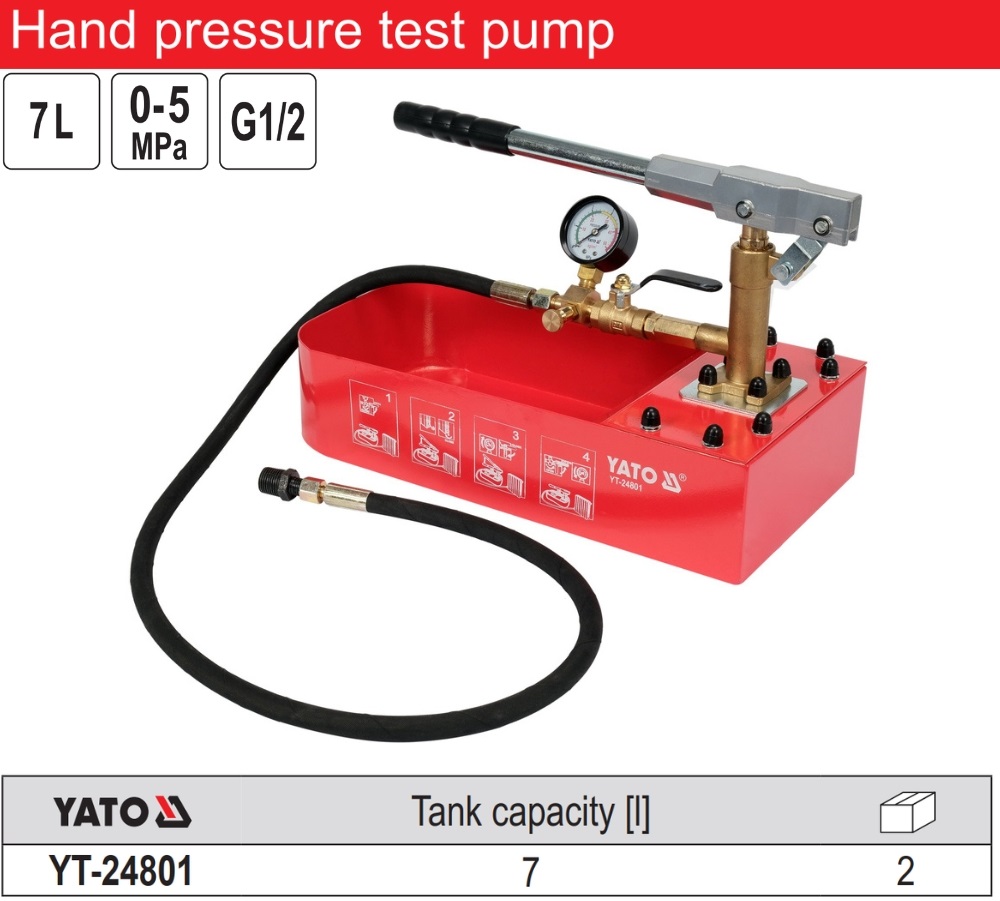

Technical Specifications of the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

• Brand: Yato
• Product Code: YT-24801
• Standard: CE (Europe)
• Working Pressure: 0–50 bar (5 MPa)
• Tank Capacity: 7 liters
• Flow Rate per Pump Cycle: 40 ml
• Connection Thread: G1/2"
• Lever Length: 360 mm
• Hose Length: 1400 mm
• Maximum Liquid Temperature: 50°C
• Pump Body Material: Aluminum
• Handle Finish: Chrome
• Safety Valve: Yes
• Product Line: GRF
• Responsible Unit in the EU: TOYA S.A.

Operating Principle of the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

• The pump operates on a manual hydraulic mechanism. When the user applies force to the lever, the piston inside compresses the liquid in the tank and pushes it into the piping system. The pressure gradually increases and remains stable thanks to the integrated valve, allowing for accurate and safe testing of the system 's tightness and pressure resistance.

Applications of the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

• Testing pressure and tightness of drinking water supply systems.
• Testing central heating and air conditioning systems.
• Checking compressed air and industrial oil pipes.
• Filling antifreeze solutions for CO systems.
• Pumping and filling liquids for solar energy systems.

Usage Instructions for the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

1. Fill the tank with water or the liquid to be tested.
2. Connect the G1/2" thread to the system to be tested.
3. Pump steadily to the desired pressure level.
4. Monitor the pressure gauge and check for leaks.
5. After completion, slowly release pressure through the safety valve.

Assembly Instructions for the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

1. Attach the pressure hose to the pump body.
2. Tighten the threaded connections to ensure tightness.
3. Check the valve and lever before operation.

Maintenance of the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

• Completely drain the liquid after use.
• Dry the pump body and handle.
• Store in a dry place, avoiding direct sunlight.
• Periodically check the valve and sealing gaskets.

Frequently Asked Questions about the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

• Is the product suitable for professional work?
  Yes. The maximum pressure of 50 bar and durable aluminum construction meet the needs of professional construction and maintenance.
• Is the 7-liter capacity convenient to use?
  The large capacity allows for continuous pumping, reducing refill time and making it more comfortable for long work sessions.
• What are the benefits of the integrated safety valve?
  The valve helps maintain stable pressure, protecting the system and the user when pressure exceeds the allowable limit.
• Does the product meet safety standards?
  Yes. The pump meets CE European standards, ensuring durability and safety during long-term use.

What should be noted when using the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801:

• Do not exceed the maximum pressure of 50 bar.
• Use liquids with a temperature not exceeding 50°C.
• Check connections before pumping to avoid leaks.
• Always fully release pressure after completing work.

This product is developed by Yato Tools – a reputable technical tool brand from Poland, known for precision and durability used in many projects worldwide. Choose the Pressure Test Pump 50 Bar 7L 1/2" Yato YT-24801 today for a quick, accurate, and safe system check.
