Yato YT-09676 Lightweight Composite Horizontal Air Angle Grinder - Poland

As a skilled worker, you understand the importance of owning adequate quality tools for the job. However, you do not always have enough conditions to equip yourself with all the necessary tools. Lack of tools can lead to many problems that affect your work efficiency and income:

Perfect solution: Yato YT-09676 Poland ultra-light composite horizontal manual air grinder

YT-09676 air grinder is the perfect solution for professional workers who want to improve work efficiency and ensure safety during use. The product possesses outstanding advantages:

• Compact design, light weight: Helps you easily manipulate and move during work.
• Powerful capacity: Meets diverse usage needs for different types of materials.
• Silent operation: Minimizes noise and vibration, creates a comfortable feeling when used.
• High durability: High quality composite material helps the YT-09676 grinder to be durable, withstands impact well.

Technical specifications:

• Brand: Yato
• Product code: YT-09676
• Compliant with "CE-European" standards
• No-load speed: 20,000 rpm
• Case material: Composite
• Tool holder size: 1/4" (6.3 mm)
• Weight: 0.48 kg
• Audio noise level: 92.0 ± 3.0 dB(A)
• Sound power: 103.0 ± 3.0 dB(A)
• Vibration: 1.4 ± 1.5 m/s²
• Maximum accessory diameter: 50 mm
• Air consumption: 113 l/min
• Maximum working pressure: 0.63 MPa
• Gas connection diameter (PT): Standard
• Speed ​​adjustment function: Yes
• Rotary air blowing direction: 360°
• Inner diameter of air line: 3/8" (9.5 mm)

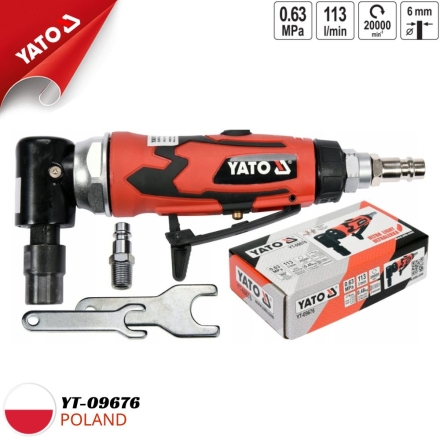

Product set includes:

• Air grinder
• Coupling connection for air lines
• 2 keys for tool holder

Outstanding features:

• Professional air grinder uses compressed air.
• Can cut and grind many different materials with suitable grinding wheels.
• Suitable for use in automobile repair workshops and in industry.

Detailed information:

• Shaft diameter: 6 mm
• Pressure: 0.63 MPa
• Air flow: 113 l/min
• Maximum rotation speed: 20,000 rpm
• Stepless speed adjustment: Yes
• 360° rotating air blowing system: Yes
• Lightweight composite case, compact size: Brings comfort when used
• Safety locking mechanism on trigger: Prevents accidental starting
• Standard air connector: Easy connection to compressed air source
• Accessories included: Key to attach the tool to the clamp head, connector for the air line

Principle of operation of Yato YT-09676 ultra-light horizontal manual air grinder

The YT-09676 air grinder operates on the principle of using compressed air to create rotation for the grinding wheel. Compressed air is led into the machine through the air line and into the air chamber. When the air valve is opened, compressed air will push the piston to move, creating rotation for the main shaft. The main shaft is connected to the grinding wheel through a transmission, helping the grinding wheel rotate at high speed.

Instructions for using Yato YT-09676 ultra-light 6mm horizontal hand air grinder:

Before use:

1. Check the grinder: Make sure the grinder is not damaged and all parts are working properly.
2. Installing the grinding wheel: Choose the grinding wheel suitable for the intended use. Install the grinding wheel into the chuck and tighten it with a key.
3. Connecting the compressed air source: Use a suitable air line to connect the grinder to the compressed air source. Make sure that the compressed air pressure is within the allowable range of the grinder.

Use:

1. Speed ​​adjustment: Use the speed adjustment knob to set the rotation speed suitable for your intended use.
2. Turn on the grinder: Press the trigger to start the grinder.
3. Using the grinder: Move the grinder over the surface to be machined. Make sure that the grinding wheel is in direct contact with the machined surface.
4. Turn off the grinder: Release the trigger to turn off the grinder.

After use:

1. Remove the grinding wheel: Use the key to remove the grinding wheel from the chuck.
2. Cleaning the grinder: Use a clean towel to wipe off dirt on the grinder.
3. Storing the grinder: Store the grinder in a dry, cool place and out of reach of children.

Note:

• It is necessary to use the air grinder safely and follow the accompanying instructions for use.
• It is necessary to use accessories that are suitable for the air grinder and ensure safety when used.
• The air grinder should be stored in a dry, cool place and out of reach of children.
