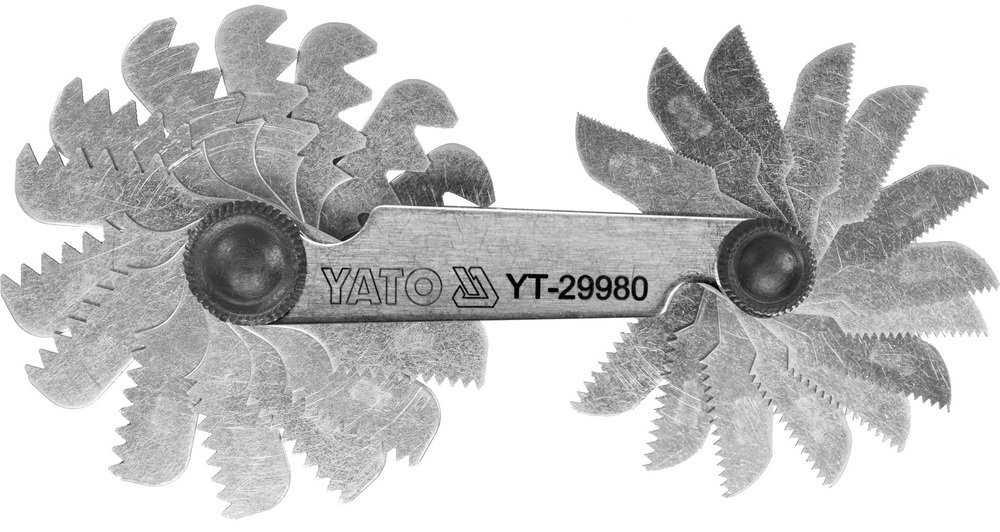

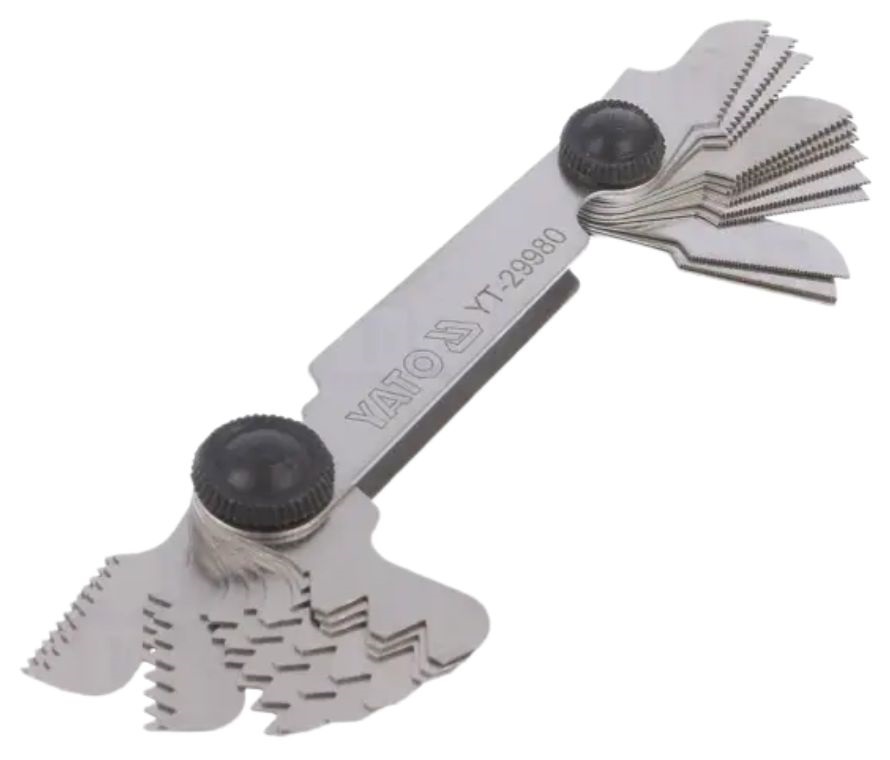

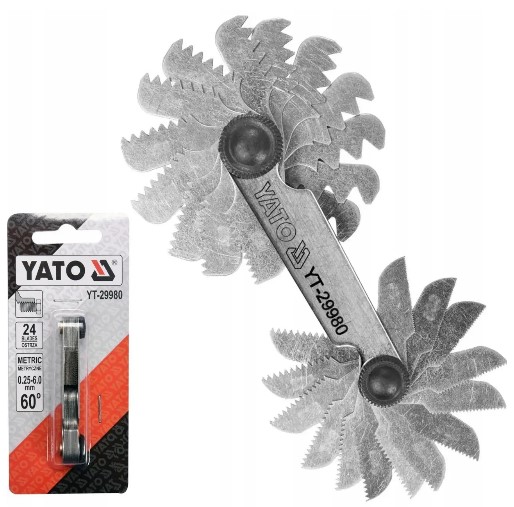

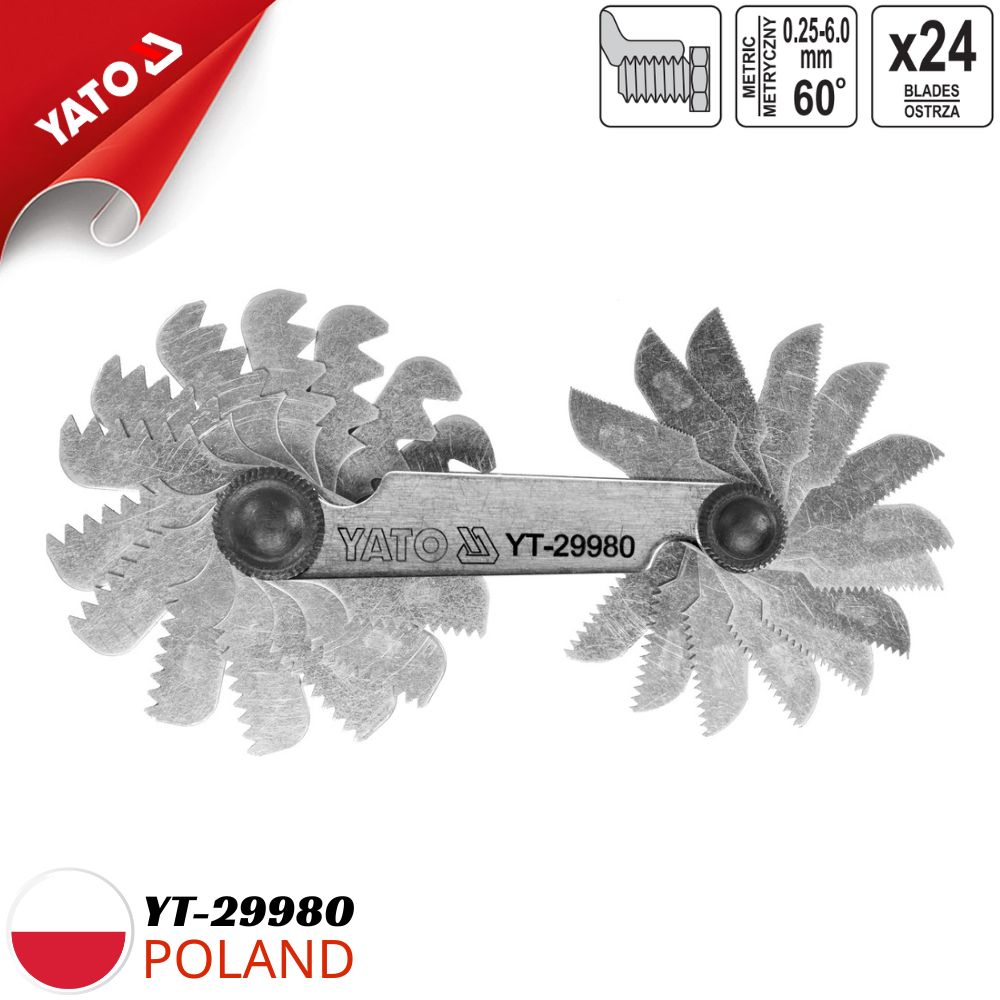

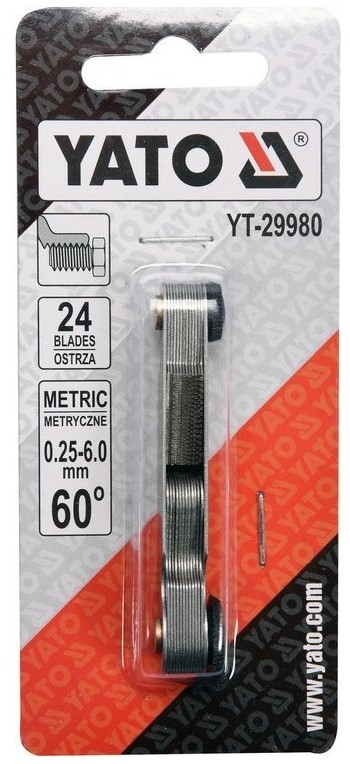

Yato YT-29980 Thread Gauge 0.25-6mm 60° - Poland

Are you struggling to check the accuracy of threads during machining?
Using the wrong gauge can waste your time, cause technical discrepancies, and affect the quality of the final product. The Yato YT-29980 thread gauge (0.25-6mm 60°) is an essential tool for anyone requiring absolute accuracy in measuring metric threads.

Uses and Advantages of the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Quickly and accurately checks thread pitch in the range of 0.25 to 6mm.
• Suitable for both external and internal threads (shaft and hole threads).
• Made from 430 stainless steel, offering excellent corrosion resistance.
• Features 24 convenient measuring blades that are easy to fold and carry.
• Standard thread angle of 60° compatible with common metric systems.
• Ideal for use in machine workshops, repair garages, and production lines.
• Developed by Yato Tools, a renowned brand from Poland known for European quality.

Technical Specifications of the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Brand: Yato
• Product Code: YT-29980
• Standard: CE (Europe)
• Thread Type: Metric
• Thread Pitch: 0.25–6.0 mm
• Measuring Sizes: 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 mm
• Material: 430 stainless steel
• Surface Treatment: Zinc plated
• Number of Measuring Blades: 24
• Standard Thread Angle: 60°

Operating Principle of the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Each blade corresponds to a specific thread pitch.
• When measuring, select the appropriate blade and place it against the thread to be checked.
• If the blade fits perfectly, the thread pitch corresponds to the specification on the blade.
• Easily folds up like a pocket knife after use, making it convenient and compact.

Applications of the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Used in precision machining, CNC processing, and machinery assembly.
• Quickly checks threads during maintenance and repair of technical equipment.
• Applicable in manufacturing, automotive, and fabrication industries.

How to Use the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Determine the thread pitch to be measured.
• Select the appropriate blade from the gauge set and bring it into contact with the thread.
• Compare the fit and shape of the thread to accurately determine specifications.

Assembly Instructions for the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• The product is solid and does not require assembly.
• The measuring blades are pre-attached to a fixed shaft and can be folded like a pocket knife.
• When opened for use, gently tighten the central screw to secure the blade if necessary.

Maintenance of the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Wipe dry after use to avoid dirt and grease.
• Store in a dry box, avoiding damp places.
• Do not use the gauge for striking, prying, or as a lever.

Notes When Using the Yato YT-29980 Thread Gauge (0.25-6mm 60°):

• Only use for measuring metric threads; not suitable for inch threads.
• Avoid bending or scratching the gauge, which could distort measurement results.
• Do not use the gauge for worn or severely damaged threads.

Are you in need of a precise, quick, and convenient thread measurement tool? Choose the Yato YT-29980 Thread Gauge (0.25-6mm 60°) – your reliable assistant for technical inspection!

Yato Tools – European Quality, Optimal Solutions for Industrial Applications

Yato Tools, founded in 1990 in Poland, is a leading brand specializing in hand tools and industrial equipment. With over 30 years of experience, Yato is present in over 100 countries and offers more than 14,000 products serving industries such as automotive, construction, industrial, electrical, and mechanical repair.

Yato products are manufactured to CE, ISO, and GS standards, ensuring high quality, safety, and exceptional performance. Yato Tools is the top choice for professionals, repair technicians, and businesses that demand reliable tools and long-lasting durability.

Kocu Vietnam is the exclusive distributor of Yato Tools in Vietnam, committed to offering genuine products, reliable after-sales service, and professional technical support.
