Yato YT-73128 120m Laser Distance Meter with Camera | Poland | Outdoor Accuracy

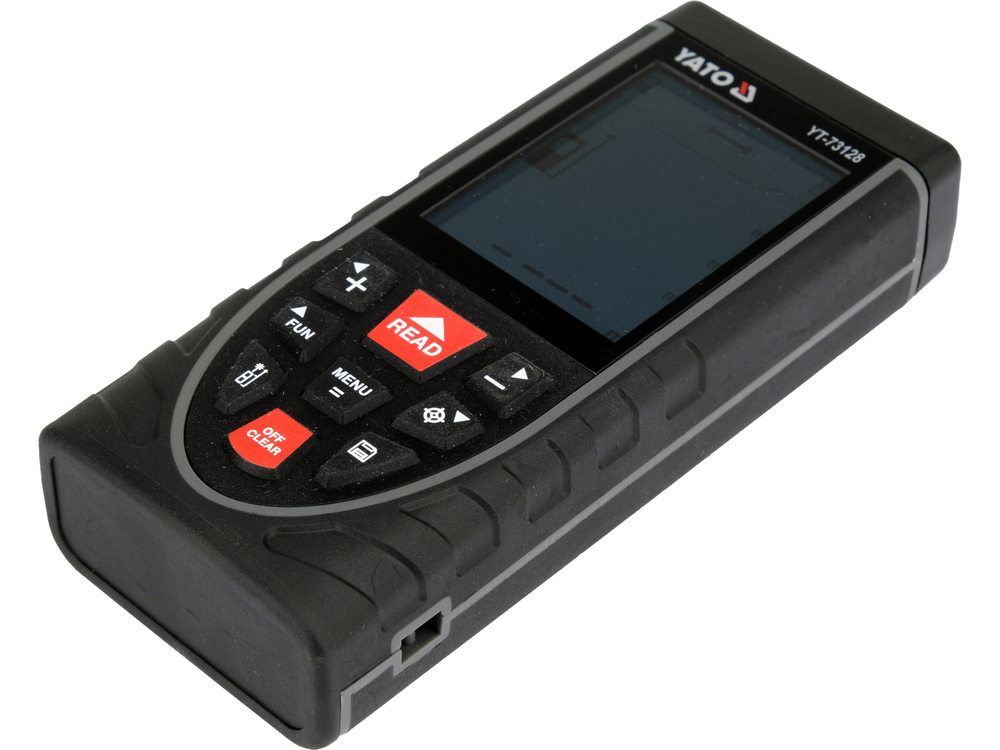

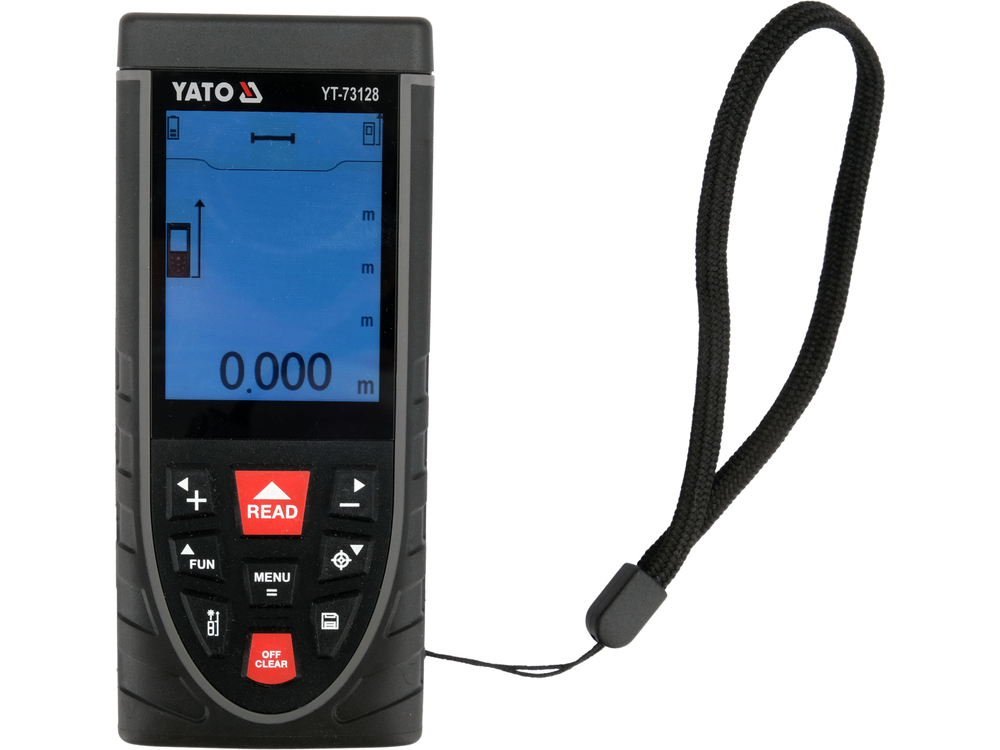

Introduction to YATO YT-73128 Laser Distance Meter with Camera

The YATO YT-73128 is a premium laser distance meter from the GRF series developed by Yato, featuring a camera that supports outdoor measurements, allowing clear observation of the measurement point even in bright light conditions.

The device measures distances from 0.05 to 120 meters with an accuracy of ±2 mm, fully integrated with indirect measurement modes, angle measurement, area and volume measurement, data storage, and computer connectivity via USB.

User Pain Points: With conventional laser distance meters, users often face:

• Inability to see the laser point when measuring outdoors in sunlight
• Large errors when measuring long distances
• Inability to measure angles and indirect heights
• Inability to store measurement data
• Weak batteries, slow charging, outdated charging ports

The YATO YT-73128 is designed to solve all these issues.

Specifications of YATO YT-73128 Laser Distance Meter:

• Model: YT-73128
• Measuring Range: 0.05 – 120 m
• Measurement Units: meters, feet, inches, feet + inches
• Accuracy: ±2 mm
• Reference Points: 3
• Memory: 100 results
• Angle Measurement: -90 ~ +90°
• Laser: Class 2, <1 mW
• Laser Wavelength: 630 – 670 nm
• Laser Color: Red
• Camera Support: Yes
• Screen: Color LCD with backlight
• Battery: Li-Ion 3.7 V – 2000 mAh
• Charging: USB Type-C
• Dimensions: 125 x 54 x 27 mm
• Weight: 155 g

Outstanding Features of YATO YT-73128:

• Camera Measurement – Superior Advantage: The integrated camera allows for direct preview of the measurement point on the screen, especially effective for outdoor measurements, large constructions, or distant locations.

• Smart Indirect Measurement:

  • Measurement based on the Pythagorean theorem
  • Measurement using 1, 2, or multiple right triangles
  • Indirect height and length measurement

• Area – Volume Measurement:

  • Suitable for:
    • Calculating room area
    • Calculating volume of warehouses, tanks, enclosed spaces
    • Continuous measurement – Min / Max

• Measurement Modes Supported:

  • Single measurement
  • Continuous measurement
  • Addition/Subtraction of distances
  • Fixed tilt angle measurement
  • Camera measurement
  • Delayed measurement from 3 – 60 seconds
  • Digital spirit level
  • Plumbing function

Practical Applications of YATO YT-73128:

• Construction – Finishing:

  • Measuring lengths and heights of constructions
  • Measuring layouts and workspaces

• Mechanical and Electrical (MEP):

  • Locating system installations
  • Indirect measurements in hard-to-reach places

• Interior – Aluminum and Glass:

  • Measuring rooms, cabinets, partitions
  • Ensuring accurate dimensions

• Outdoor – Large Projects:

  • Measuring long distances
  • Performing well under strong sunlight

Operating Principle:

• The laser beam reflects off objects, combining image processing from the camera and angle sensors to calculate distance, height, and volume. The self-calibrating system helps maintain long-term accuracy.

Why Choose YATO YT-73128:

• Rare outdoor measurement camera support
• High accuracy ±2 mm
• Comprehensive indirect measurement modes
• Convenient USB-C rechargeable battery
• Easy-to-read color display
• Compact and sturdy design

Basic Usage Instructions:

1. Select the appropriate measurement unit
2. Determine the reference measurement point
3. Observe the measurement point through the camera
4. Perform the measurement
5. Save or connect to a computer to export data

Frequently Asked Questions:

• Does YATO YT-73128 measure well in bright sunlight?

  • Yes, the integrated camera allows for clear observation of the measurement point even in strong light.

• Can the device measure indirect heights?

  • Yes, it supports multiple indirect measurement modes based on the Pythagorean theorem.

• What type of charging port does it use?

  • It charges via USB Type-C, which is convenient and widely used.

• Does it store measurement data?

  • Yes, it has a memory that can store 100 measurement results.

The YATO YT-73128 is a professional laser distance meter, particularly suitable for outdoor measurements, large projects, and bright light environments. If you need high accuracy, quick measurements, and multiple functions in a compact device, this is a worthwhile investment. Contact us now for consultation and pricing on the genuine YATO YT-73128 laser meter.

Yato Tools – European Quality, Optimal Solutions for Industrial Applications

Yato Tools, founded in 1990 in Poland, is a leading brand specializing in hand tools and industrial equipment. With over 30 years of experience, Yato is present in over 100 countries and offers more than 14,000 products serving industries such as automotive, construction, industrial, electrical, and mechanical repair.

Yato products are manufactured to CE, ISO, and GS standards, ensuring high quality, safety, and exceptional performance. Yato Tools is the top choice for professionals, repair technicians, and businesses that demand reliable tools and long-lasting durability.

Kocu Vietnam is the exclusive distributor of Yato Tools in Vietnam, committed to offering genuine products, reliable after-sales service, and professional technical support.
